AutoCAD Drawings



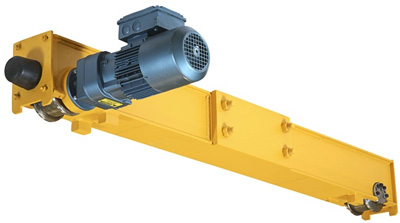

HSE 100
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications *
              HSE100-Specifications
HSE-100.174.1500 4 in 5-0 2 x 0.75 hp 7190 lbs 24000 lbs Click for Prices
HSE-100.174.1900 4 in 6-3 2 x 0.75 hp 7190 lbs 24000 lbs Click for Prices
HSE-100.174.2200 4 in 7-3 2 x 0.75 hp 7190 lbs 24000 lbs Click for Prices
HSE-100.174.2700 4 in 8-10 2 x 0.75 hp 6700 lbs 24000 lbs Click for Prices
HSE 130
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications *
HSE-130.224.1500 5 in 5-0 2 x 0.75 hp 11240 lbs 24000 lbs Click for Prices HSE130-Specifications
HSE-130.224.1900 5 in 6-3 2 x 0.75 hp 11240 lbs 24000 lbs Click for Prices
HSE-130.224.2200 5 in 7-3 2 x 0.75 hp 10610 lbs 24000 lbs Click for Prices
HSE-130.224.2700 5 in 8-10 2 x 0.75 hp 11240 lbs 24000 lbs Click for Prices
HSE-130.224.3200 5 in 10-6 2 x 0.75 hp 10240 lbs 24000 lbs Click for Prices
HSE 160
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications *
HSE-160.274.1900 6.5 in 6-3 2 x 1.0 hp 16400 lbs 35200 lbs Click for Prices HSE160-Specifications: 1900/2200/2700 Wheel Base
HSE-160.274.2200 6.5 in 7-3 2 x 1.0 hp 16400 lbs 35200 lbs Click for Prices
HSE-160.274.2700 6.5 in 8-10 2 x 1.0 hp 16400 lbs 35200 lbs Click for Prices
HSE-160.274.3200 6.5 in 10-6 2 x 1.0 hp 14550 lbs 35200 lbs Click for Prices HSE160-Specifications: 3200/3800 Wheel Base
HSE-160.274.3800 6.5 in 12-6 2 x 1.0 hp 12250 lbs 35200 lbs Click for Prices
HSE 200
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications *
HSE-200.324.1900 8 in 6-3 2 x 1.5 hp 23450 lbs 63000 lbs Click for Prices HSE200-Specifications
HSE-200.324.2200 8 in 7-3 2 x 1.5 hp 23450 lbs 63000 lbs Click for Prices
HSE-200.324.2700 8 in 8-10 2 x 1.5 hp 18850 lbs 63000 lbs Click for Prices
HSE-200.324.3200 8 in 10-6 2 x 1.5 hp 19900 lbs 63000 lbs Click for Prices
HSE-200.324.3800 8 in 12-6 2 x 1.5 hp 16750 lbs 63000 lbs Click for Prices
HSE 250
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications *
HSE-250.394.1900 10 in 6-3 2 x 2.0 hp 34950 lbs 93500 lbs Click for Prices HSE250-Specifications
HSE-250.394.2200 10 in 7-3 2 x 2.0 hp 30200 lbs 93500 lbs Click for Prices
HSE-250.394.2700 10 in 8-10 2 x 2.0 hp 24600 lbs 93500 lbs Click for Prices
HSE-250.394.3200 10 in 10-6 2 x 2.0 hp 20750 lbs 93500 lbs Click for Prices
HSE-250.394.3800 10 in 12-6 2 x 2.0 hp 18711 lbs 93500 lbs Click for Prices
HSE 315
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications *
HSE-315.400.1900 12 in 6-3 2 x 2.0 hp 38700 lbs 140000 lbs Click for Prices HSE315-Specifications
HSE-315.400.2200 12 in 7-3 2 x 2.0 hp 33400 lbs 140000 lbs Click for Prices
HSE-315.400.2700 12 in 8-10 2 x 2.0 hp 27250 lbs 140000 lbs Click for Prices
HSE-315.400.3200 12 in 10-6 2 x 2.0 hp 28250 lbs 140000 lbs Click for Prices
HSE-315.400.3800 12 in 12-6 2 x 2.0 hp 23800 lbs 140000 lbs Click for Prices

* Subject to minor variations.
