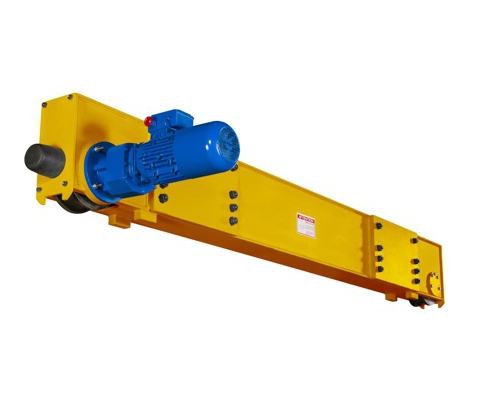

HSZ Endtruck for Double Girder CranesAutoCAD Drawings



HSZ 130
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications **
HSZ-130.224.2700 5 in 8-10 2 x 0.75 hp 11240 lbs 24000 lbs Click for Prices. HSZ130-Specifications
HSZ-130.224.2900 5 in 9-6 2 x 0.75 hp 11240 lbs 24000 lbs Click for Prices.
HSZ-130.224.3200 5 in 10-6 2 x 0.75 hp 11240 lbs 24000 lbs Click for Prices.
HSZ-130.224.3800 5 in 12-6 2 x 0.75 hp 11240 lbs 24000 lbs Click for Prices.
HSZ-130.224.4600 5 in 15-0 2 x 0.75 hp 9100 lbs 24000 lbs Click for Prices.
HSZ 160
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications **
HSZ-160.274.2700 6.25 in 8-10 2 x 1.0 hp 16410 lbs 35200 lbs Click for Prices. HSZ160-Specifications
HSZ-160.274.2900 6.25 in 9-6 2 x 1.0 hp 16410 lbs 35200 lbs Click for Prices.
HSZ-160.274.3200 6.25 in 10-6 2 x 1.0 hp 16410 lbs 35200 lbs Click for Prices.
HSZ-160.274.3800 6.25 in 12-6 2 x 1.0 hp 16410 lbs 35200 lbs Click for Prices.
HSZ-160.274.4600 6.25 in 15-0 2 x 1.0 hp 15140 lbs 35200 lbs Click for Prices.
HSZ 200
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications **
HSZ-200.324.2700 8 in 8-10 2 x 1.5 hp 25170 lbs 63000 lbs Click for Prices. HSZ200-Specifications
HSZ-200.324.2900 8 in 9-6 2 x 1.5 hp 25170 lbs 63000 lbs Click for Prices.
HSZ-200.324.3200 8 in 10-6 2 x 1.5 hp 25170 lbs 63000 lbs Click for Prices.
HSZ-200.324.3800 8 in 12-6 2 x 1.5 hp 25170 lbs 63000 lbs Click for Prices.
HSZ-200.324.4600 8 in 15-0 2 x 1.5 hp 19760 lbs 63000 lbs Click for Prices.
HSZ 250
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications **
HSZ-250.394.2700 10 in 8-10 2 x 2.0 hp 38210 lbs 93500 lbs Click for Prices. HSZ250-Specifications
HSZ-250.394.2900 10 in 9-6 2 x 2.0 hp 38210 lbs 93500 lbs Click for Prices.
HSZ-250.394.3200 10 in 10-6 2 x 2.0 hp 38210 lbs 93500 lbs Click for Prices.
HSZ-250.394.3800 10 in 12-6 2 x 2.0 hp 38210 lbs 93500 lbs Click for Prices.
HSZ-250.394.4600 10 in 15-0 2 x 2.0 hp 33560 lbs 93500 lbs Click for Prices.
HSZ 315
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications **
HSZ-315.425.2700 12 in 8-10 2 x 3.0 hp 48550 lbs 140000 lbs Click for Prices. HSZ315-Specifications
HSZ-315.425.2900 12 in 9-6 2 x 3.0 hp 48550 lbs 140000 lbs Click for Prices.
HSZ-315.425.3200 12 in 10-6 2 x 3.0 hp 48550 lbs 140000 lbs Click for Prices.
HSZ-315.425.3800 12 in 12-6 2 x 3.0 hp 48550 lbs 140000 lbs Click for Prices.
HSZ-315.425.4100 12 in 13-6 2 x 3.0 hp 48550 lbs 140000 lbs Click for Prices.
HSZ-315.425.4600 12 in 15-0 2 x 3.0 hp 48840 lbs 140000 lbs Click for Prices.
HSZ 400
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications **
HSZ-400.524.2900 16 in 9-6 2 x 5.0 hp 58450 lbs 200000 lbs Click for Prices. HSZ400-Specifications
HSZ-400.524.3200 16 in 10-6 2 x 5.0 hp 58450 lbs 200000 lbs Click for Prices.
HSZ-400.524.3800 16 in 12-6 2 x 5.0 hp 58450 lbs 200000 lbs Click for Prices.
HSZ-400.524.4100 16 in 13-6 2 x 5.0 hp 58450 lbs 200000 lbs Click for Prices.
HSZ-400.524.4600 16 in 15-0 2 x 5.0 hp 58450 lbs 200000 lbs Click for Prices.
HSZ 500
Item # Wheel
Diameter
Wheel
Base
120 fpm
Motor
Wheel
Load
Moving
Mass
Suggested
List Price*
Specifications **
HSZ-500.625.3200 20 in 10-6 2 x 7.5 hp 76430 lbs 290000 lbs Click for Prices. HSZ500-Specifications
HSZ-500.625.3800 20 in 12-6 2 x 7.5 hp 76430 lbs 290000 lbs Click for Prices.
HSZ-500.625.4100 20 in 13-6 2 x 7.5 hp 76430 lbs 290000 lbs Click for Prices.
HSZ-500.625.4600 20 in 15-0 2 x 7.5 hp 76430 lbs 290000 lbs Click for Prices.

** Subject to minor variations.
