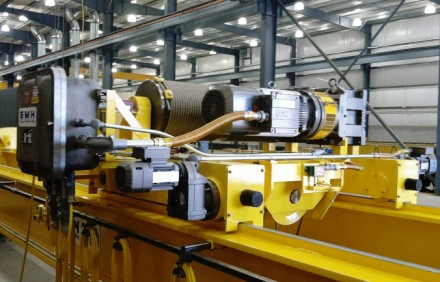

EMH Model E Monorail Hoists Designed for Hazardous Duty Locations

Hoist Model Number Capacity Lift Hoist Speed Price ($US) UL/CSA/NEC Adder
EM0832L1-162.41.101.EX 3 tons 33 ft. 1-speed Click for prices.

Click for prices.

EM1050L1-161.41.100.EX 5 tons 33 ft. 1-speed Click for prices.

Click for prices.

EM2063L1-161.41.100.EX 7.5 tons 33 ft. 1-speed Click for prices.

Click for prices.

EM3100L1-162.41.101.EX 10 tons 33 ft. 1-speed Click for prices.

Click for prices.

EM0832L6-162.41.101.EX 3 tons 33 ft. 2-speed Click for prices.

Click for prices.

EM1050L6-161.41.100.EX 5 tons 33 ft. 2-speed Click for prices

Click for prices.

EM2063L6-161.41.100.EX 7.5 tons 33 ft. 2-speed Click for prices.

Click for prices.

EM3100L6-162.41.101.EX 10 tons 33 ft. 2-speed Click for prices.

Click for prices.

The EMH Standard line of hoists will be equipped with motors that conform to:

  • IECEx CES 10.0023X Issue No.0 of 2011-03-15
  • ATEX Directive 94/9/EC, CESI 06 ATEX 059

Brakes that conform to:

  • IECEx INE 11.0037X
  • ATEX Directive 94/9/EC, INERIS 06ATEX0047
  • CSA

Since your stated requirement is Class I, Division 2, Groups C & D, it is our intention to supply three-phase asynchronous motors in accordance with IECEx CES 10.0023X Issue No.0 of 2011-03-15, and ATEX Directive 94/9/EC, CESI 06 ATEX 059. If you object to this, please notify EMH as soon as possible. Please note add-cost for UL/CSA/NEC.

Optional Items

Horn, Vibrating Explosion Proof

Click for prices

Strobe Division 2 Hazardous Location, RED, 120VAC

Click for prices

Pendant for Class 1, DIV2 Locatons

Click for prices

Load Limit Switch

Click for prices

Consult Factory for Additional Speeds, Lifts, Capacities, and Configurations

Consult Factory for Optional Spark Resistant Features
