ELV and ELK Series

The advantages of single girder traveling cranes are evident with load capacities up to 20 tons and spans up to 120 feet.

These advantages are:

  • Low dead weight and more headroom by using a low headroom monorail hoist. It is the most economical solution in buildings with a span over 90 ft.
  • Lower production cost, and therefore lower price, than a double girder model.
Single Girder Crane

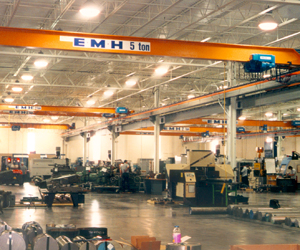

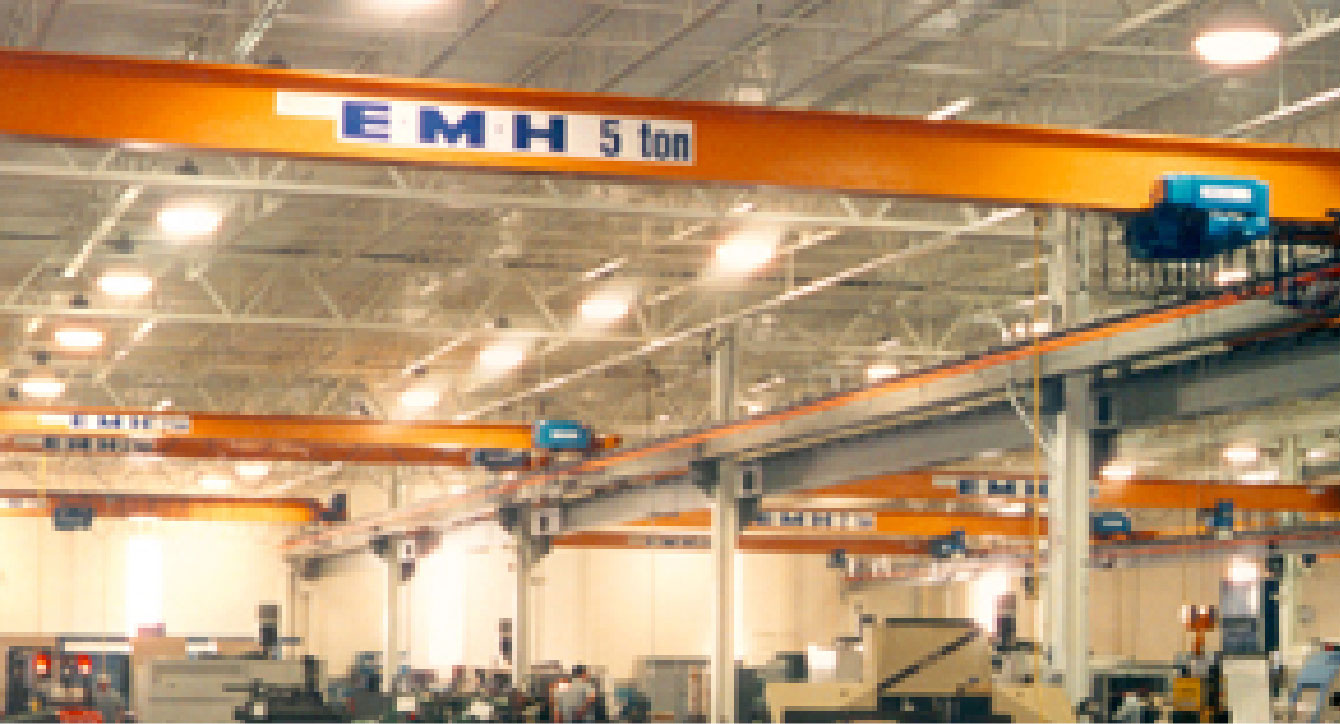

This installation at a manufacturer of roll forming equipment consists of 15 structural girder cranes with capacities from 1/2 to 5 tons. This installation includes five bridge crane runways, with lengths varying from 70 to 250 feet. Nearly all of the cranes are used in workstation areas.
Single Girder Crane

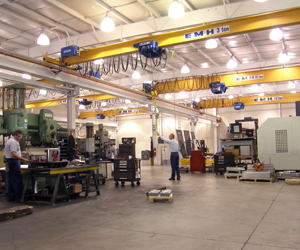

Six single girder cranes of various capacities are utilized at a Midwest tool and die plant.

Single Monobox

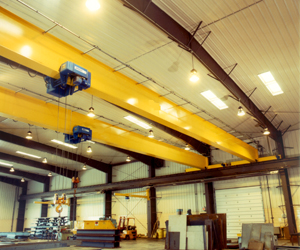

Monobox construction allows a 95 foot span on these 10 ton single girder cranes. Spans up to 120 feet are possible.
Single Girder Mold Facility

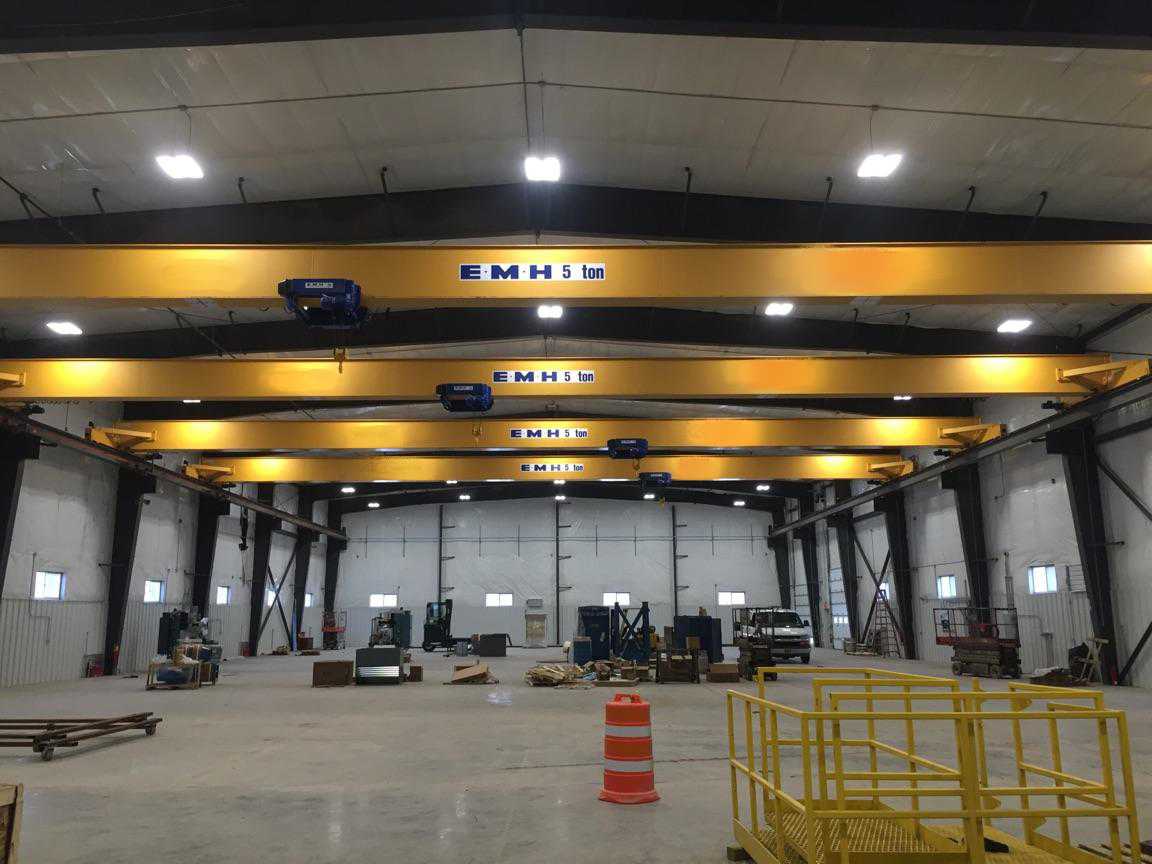

Four single girder cranes at a Midwestern mold facility.

ELV Top Running Single Structural Girder Cranes
  Girder Type Capacity Max Span Download Specs
ELV 2 Structural 2 Tons 60 ft. ELV 2 Dimensions and Specs
ELV 3 Structural 3 Tons 60 ft. ELV 3 Dimensions and Specs
ELV 4 Structural 5 Tons 60 ft. ELV 4 Dimensions and Specs
ELV 5 Structural 7.5 Tons 60 ft. ELV 5 Dimensions and Specs
ELV 6 Structural 10 Tons 60 ft. ELV 6 Dimensions and Specs
ELK Top Running Single Box Girder Cranes
Girder Type Capacity Max Span Download Specs
ELK 2 Box 3 Tons 80 ft. ELK 2 Dimensions and Specs
ELK 3 Box 5 Tons 80 ft. ELK 3 Dimensions and Specs
ELK 4 Box 7.5 Tons 80 ft. ELK 4 Dimensions and Specs
ELK 5 Box 10 Tons 80 ft. ELK 5 Dimensions and Specs
ELK 6 Box 13.75 Tons 80 ft. ELK 6 Dimensions and Specs
