Jib Cranes – Wall Traveling

Wall Traveling Jib Cranes

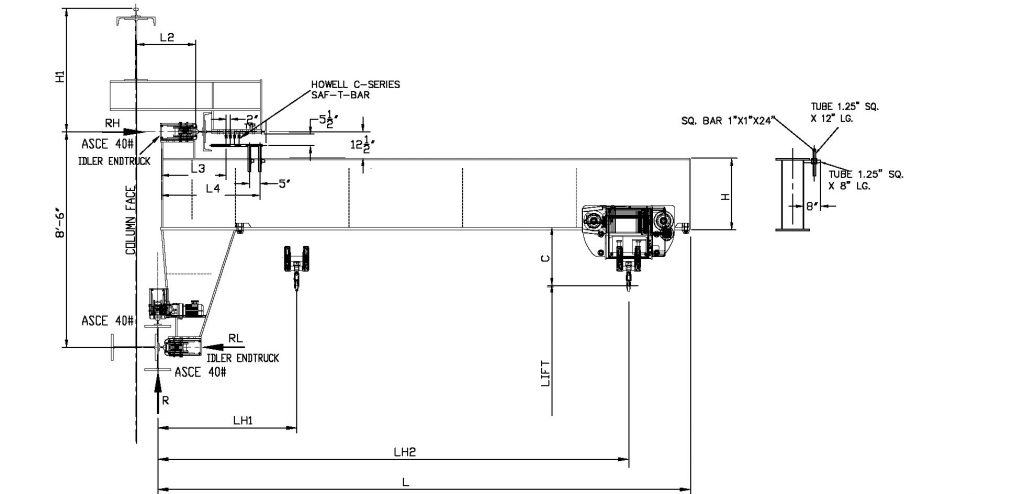

Capacity in Tons	Span (ft/in)	Hoist Model No.	Lift	LH1	LH2	C (in)	H (in)	L	R (lbs.)	RH=RL (lbs.)	SP-WT (lbs.)	List Price
2	20′ 0″	EM820L6-162.41.060.E	20′ 0″	5′ 8″	18’0″	22	33	20′ 0″	5,610	9,075	9,824	Click for prices.
2	25′ 0″	EM820L6-162.41.060.E	20′ 0″	5′ 8″	23′ 0″	22	33	25′ 0″	7,120	9,240	10,320
3	20′ 0″	EM820L6-162.41.060.E	20′ 0″	5′ 8″	18’0″	22	33	20′ 0″	8,426	10,986	18,990
3	25′ 0″	EM820L6-162.41.060.E	20′ 0″	5′ 8″	23′ 0″	22	33	25′ 0″	9,076	13,820	12,156
5	20′ 0″	EM1050L6-162.41.060.E	20′ 0″	6′ 0″	17′ 0″	24	37	20′ 0″	11,200	15,985	12,400
5	25′ 0″	EM1050L6-162.41.060.E	20′ 0″	6′ 0″	22′ 0″	24	37	25′ 0″	12,148	18,948	13,460
7.5	20′ 0″	EM2063L6-162.41.060.E	20′ 0″	6′ 4″	17′ 0″	32	41	20′ 0″	14,110	22,864	12,640
7.5	25′ 0″	EM2063L6-162.41.060.E	20′ 0″	6′ 4″	22′ 0″	32	41	25′ 0″	14,658	25,998	13,650
10	20′ 0″	EM 3100L6-162.41.060.E	20′ 0″	7′ 0″	17′ 0″	35	45	20′ 0″	17,440	26,862	14,880
10	25′ 0″	EM 3100L6-162.41.060.E	20′ 0″	7′ 0″	22′ 0″	35	45	25′ 0″	18,620	32,862	17,264

EMH designs, sells, and manufactures a complete line of overhead material handling equipment for loads from 35 lbs. to 300 tons
