Engineered HoistsHF Engineered Hoists

Contact Us To Learn More

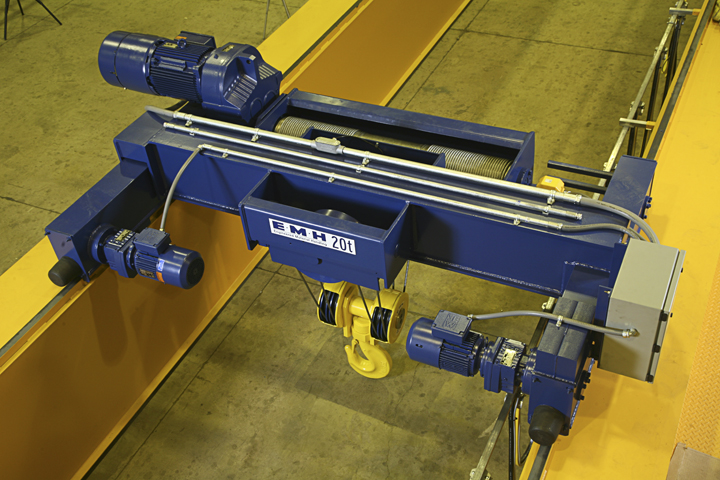

The EMH HF Trolley was designed for heavy service Class D applications such as Steel Service Centers, Heavy Steel Fabricators, and Precast Concrete Facilities.

Among the features of the HF Hoist are:

  • Capacities to 100 tons
  • Double-reeving (8/2 and 12/2) for True Vertical Lift
  • Half-depth drum grooves eliminate the need for rope guides
  • DC disc brakes
  • Easy access to upper sheaves for maintenance
  • Class F motor insulation
  • Rotating axle trolley endtrucks
  • Three-position geared limit switch (lower and upper operational, upper security) with addition of upper weight operated limit.
  • Standard Closed Loop Flux Vector VFD hoist control
  • Standard VFD trolley control
  • 40,000 hrs of B-10 life (Hoist Gearbox/Motor)
  • Rugged, durable, motors and gearboxes with the added benefit of utilizing standard components such as drums, brakes, sheaves, wheels.
  • High quality, efficient, quiet AGMA Class 11 gearing
  • Standard equalizer pin on trolley end trucks to prevent 3-wheeling

Click on Hoist Model No. for Dimensional Information

Capacity
(US Tons)		 Hoist Model Lifting Speed
(FPM VFD)		 Trolley Travel Speed
(FPM VFD)		 Reeving Lift
(FT)		 Hoist Gear Motor
(HP)		 Trolley Gear Motor
(HP)
5 EH8050V.253.42.060.HF 25 80 4/2 20 10 2x 0.25
EH8050V.253.42.100.HF 30
EH8050V.253.42.150.HF 50
10 EH8100V.253.42.060.HF 25 80 4/2 20 20 2x 0.5
EH8100V.253.42.100.HF 30
EH8100V.253.42.150.HF 50
15 EH8150V.203.82.060.HF 25 80 8/2 20 25 2x 0.75
EH8150V.203.82.100.HF 30
EH8150V.203.82.150.HF 50
20 EH8200V.203.82.060.HF 25 80 8/2 20 40 2x 0.75
EH8200V.203.82.100.HF 30
EH8200V.203.82.150.HF 50
25 EH8250V.203.82.060.HF 25 80 8/2 20 40 2x 1.0
EH8250V.203.82.100.HF 30
EH8250V.203.82.150.HF 50
30 EH8300V.163.82.060.HF 20 80 8/2 20 40 2x 1.5
EH8300V.163.82.100.HF 30
EH8300V.163.82.150.HF 50
35 EH8350V.163.82.060.HF 20 80 8/2 20 50 2x 1.5
EH8350V.163.82.100.HF 30
EH8350V.163.82.150.HF 50
40 EH8400V.163.82.060.HF 20 80 8/2 20 60 2x 1.5
EH8400V.163.82.100.HF 30
EH8400V.163.82.150.HF 50
50 EH8500V.143.122.100.HF 14 80 12/2 30 50 2x 2.0
EH8500V.143.122.150.HF 50
EH8500V.143.122.210.HF 69
60 EH8600V.123.122.100.HF 14 80 12/2 30 60 2x 2.0
EH8600V.123.122.150.HF 50
EH8600V.123.122.210.HF 69
75 EH8750V.123.122.100.HF 10 80 12/2 30 50 2x 3.0
EH8750V.123.122.140.HF 45
EH8750V.123.122.210.HF 69

Scroll down for more specifications.

Capacity
(US Tons)		 Hoist Model TRC, SP
(in)		 H1
(in)		 H2
(in)		 C
(in)		 Trolley
(mm)		 F
(in)
5 EH8050V.253.42.060.HF 63 26 30 16 100 2.64
EH8050V.253.42.100.HF 63
EH8050V.253.42.150.HF 63
10 EH8100V.253.42.060.HF 63 26 31 16 130 2.63
EH8100V.253.42.100.HF 63
EH8100V.253.42.150.HF 63
15 EH8150V.203.82.060.HF 63 26 31 19 160 3
EH8150V.203.82.100.HF 78.75
EH8150V.203.82.150.HF 98.5
20 EH8200V.203.82.060.HF 63 38 36 19 200 3
EH8200V.203.82.100.HF 78.75
EH8200V.203.82.150.HF 98.5
25 EH8250V.203.82.060.HF 63 44 34 27 200 3
EH8250V.203.82.100.HF 78.75
EH8250V.203.82.150.HF 98.5
30 EH8300V.163.82.060.HF 78.75 44 41 27 250 3
EH8300V.163.82.100.HF 98.5
EH8300V.163.82.150.HF 98.5
35 EH8350V.163.82.060.HF 78.75 50 41 27 250 3
EH8350V.163.82.100.HF 98.5
EH8350V.163.82.150.HF 118.1
40 EH8400V.163.82.060.HF 78.75 50 42 28 250 3
EH8400V.163.82.100.HF 98.5
EH8400V.163.82.150.HF 118.1
50 EH8500V.143.122.100.HF 98.5 50 47 43 315 3
EH8500V.143.122.150.HF 118.1
EH8500V.143.122.210.HF 157.5
60 EH8600V.123.122.100.HF 98.5 50 47 43 315 3.3
EH8600V.123.122.150.HF 157.5
EH8600V.123.122.210.HF 177.2
75 EH8750V.123.122.100.HF 78.75 50 54 53 400 3.26
EH8750V.123.122.140.HF 98.5
EH8750V.123.122.210.HF 137.8

Scroll down for more specifications.

Capacity
(US Tons)		 Hoist Model Trolley Wheel Base, R
(mm/inch)		 K
(in)		 O
(in)		 B
(in)		 Wire Rope diam
(mm)		 Trolley dead weight
(lbs)		 List price
5 EH8050V.253.42.060.HF 1070/42.13 31 19 6.5 8 1600 Click for Price
EH8050V.253.42.100.HF 1800
EH8050V.253.42.150.HF 2100
10 EH8100V.253.42.060.HF 1070/42.13 39 19 6.6 11 3600 Click for Prices
EH8100V.253.42.100.HF 3800
EH8100V.253.42.150.HF 4000
15 EH8150V.203.82.060.HF 1200/48.0 39 19 7.3 10 3600 Click for Prices
EH8150V.203.82.100.HF 3800
EH8150V.203.82.150.HF 4300
20 EH8200V.203.82.060.HF 1220/48.0 39 23 8.7 11 4600 Click for Prices
EH8200V.203.82.100.HF 4900
EH8200V.203.82.150.HF 5100
25 EH8250V.203.82.060.HF 1220/48.0 46 24 8.7 13 4700 Click for Prices
EH8250V.203.82.100.HF 5100
EH8250V.203.82.150.HF 5700
30 EH8300V.163.82.060.HF 1220/48.0 46 24 10.5 14 6100 Click for Prices
EH8300V.163.82.100.HF 6800
EH8300V.163.82.150.HF 7300
35 EH8350V.163.82.060.HF 1220/48.0 46 35 10.5 14 7000 Click for Prices
EH8350V.163.82.100.HF 7300
EH8350V.163.82.150.HF 7700
40 EH8400V.163.82.060.HF 1220/48.0 46 35 10.5 16 7800 Click for Prices
EH8400V.163.82.100.HF 8200
EH8400V.163.82.150.HF 8500
50 EH8500V.143.122.100.HF s1650/65.0 46 29 12 14 9700 Click for Prices
EH8500V.143.122.150.HF 10200
EH8500V.143.122.210.HF 10400
60 EH8600V.123.122.100.HF 1650/65.0 55 29 12 16 12800 Click for Prices
EH8600V.123.122.150.HF 13500
EH8600V.123.122.210.HF 14300
75 EH8750V.123.122.100.HF 1750/68.9 60 36 15 18 19500 Click for Prices
EH8750V.123.122.140.HF 20200
EH8750V.123.122.210.HF 21300
